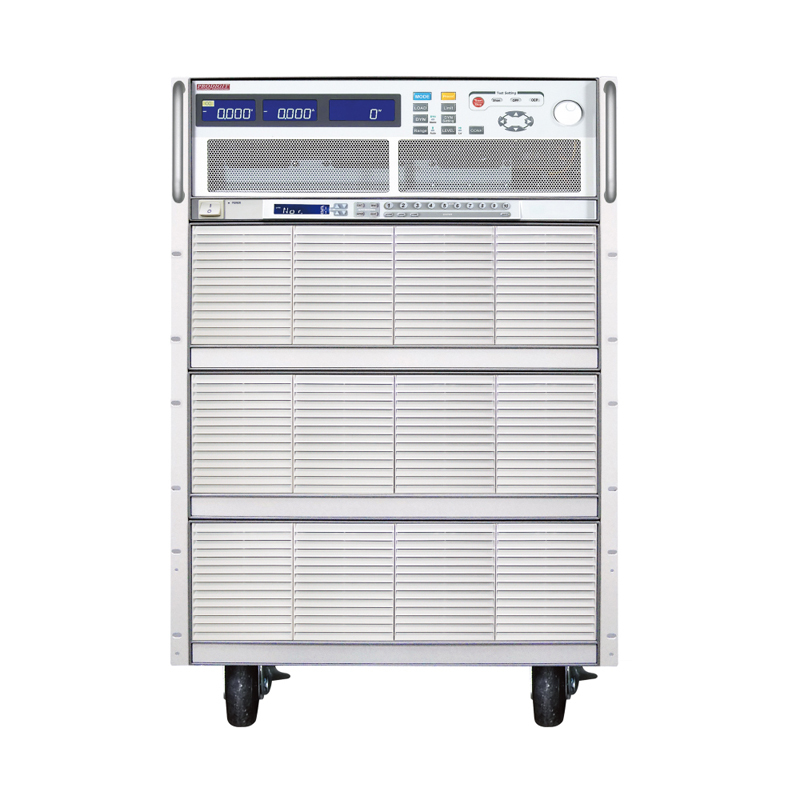

33513F High Power DC Electronic Load 60V,480A,7200W

Description

l 33500F Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB¡BRS232¡BUSB and LAN interface.

l SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

l Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

l Single key for OCP ¡BOPP test function will be more efficiency and accuracy on OCP¡BOPP testing.

l Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡¨ + ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.

Features

l 5 digit V/A/W Meter.

l High-speed measurement and communication transmission.

l Large LCD Display¡Bsetting values can be adjusted by rotary knob or push button.

l Voltage¡BCurrent and Watt value can be displayed simultaneously.

l OCP¡BOPP test function automatically.

l Power ON status can be set.

l CC, CR, CV, CP, Dynamic and Short operation mode.

l SHORT time setting.

l Protections against V,I,W, and ¢XC.

l Voltage meter display the polarity positive¡]¡¨¡Ï¡¨¡^or negative¡]¡¨¡Ð¡¨¡^is selectable.

l Optional Interface : GPIB¡BRS232¡BUSB¡BLAN.

l New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads.

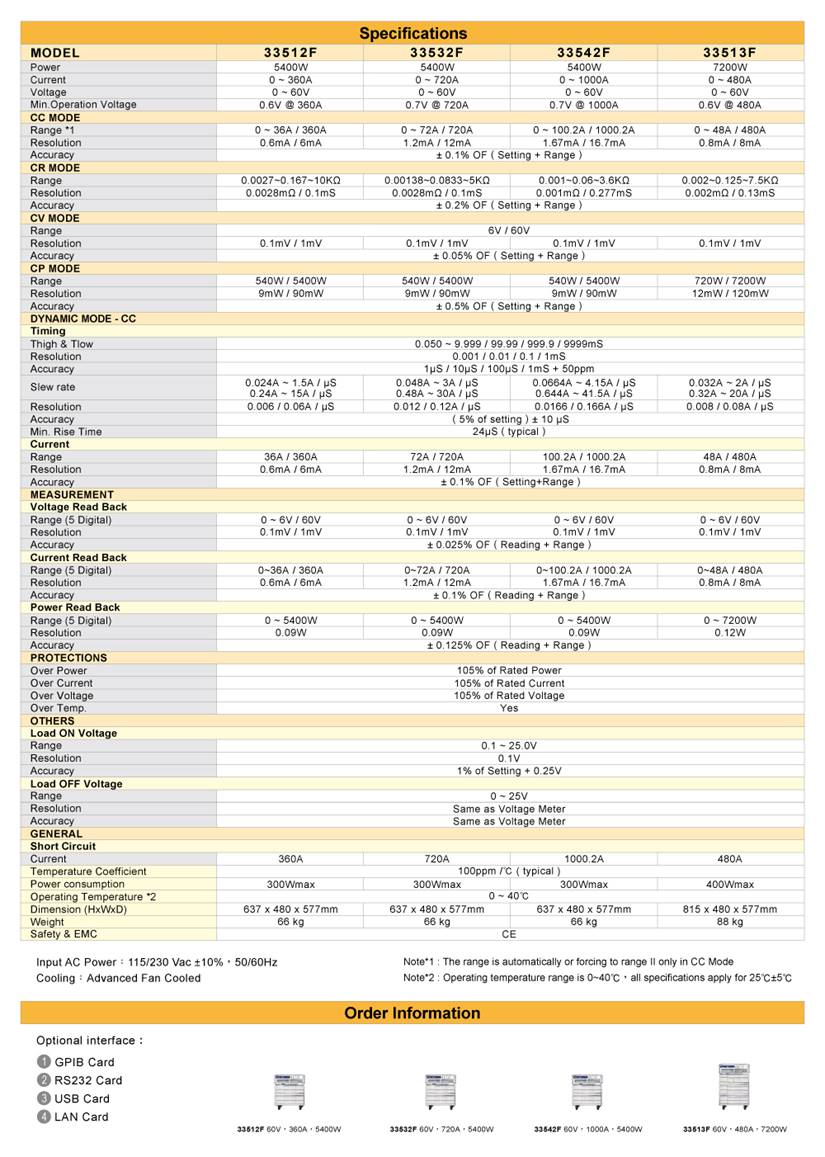

Specifications
